2/3/4/5GRF系统

一.系统能能力

软件平台	区域认证	标准	测试内容
2345G RF Tester V1.01	欧盟CE	EN301511	GSM
		EN301908-1/301908-2	WCDMA
		ETSI EN 301908-13(3GPP TS 36.521-1)	LTE<E CA
		EN301908-25(3GPP TS 38.521-1)	NR SA&NR CA
		EN301908-25(3GPP TS 38.521-3)	NR NSA
	美国FCC	FCC Part22/24	GSM
		FCC Part22/24/27	WCDMA
		FCC Part22/24/27	LTE<E CA
		FCC Part 24 Subpart E	NR SA&NR NSA&NR CA
	中国SRRC	YD/T 1215-2006	GSM
		YD/T 1548.1-2009/3GPP TS 34.121-1	WCDMA
		YD/T 2576.2-2013/YD/T 2578.2-2013	LTE<E CA
		GB/T 12572-2008(3GPP TS 38.521-1)	NR SA&NR CA
		GB/T 12572-2008(3GPP TS 38.521-3)	NR NSA

二.优势特点及适用范围：

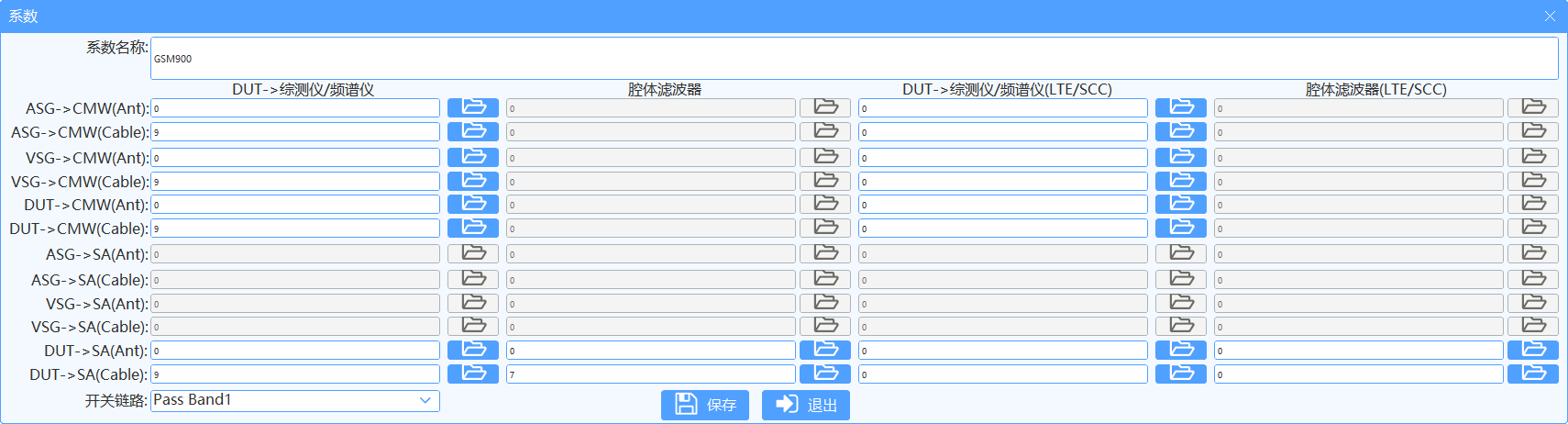

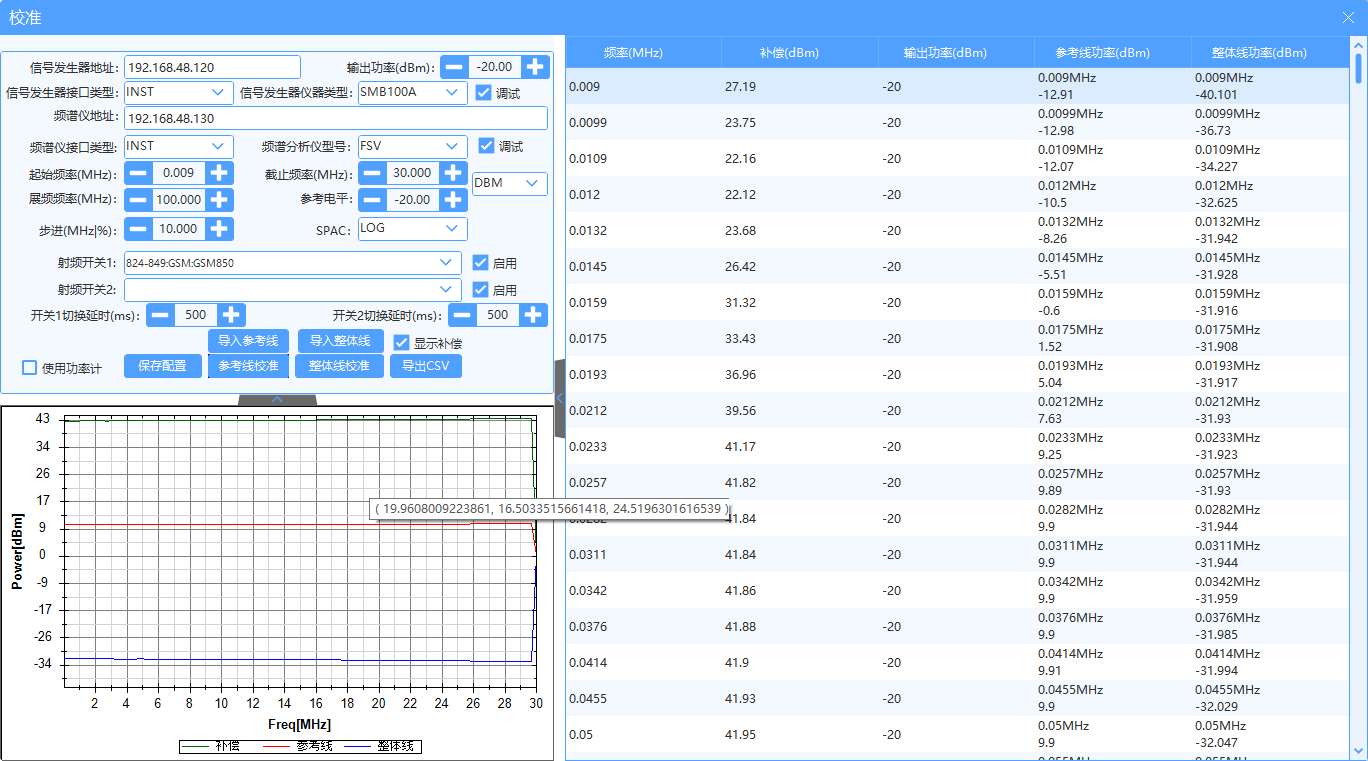

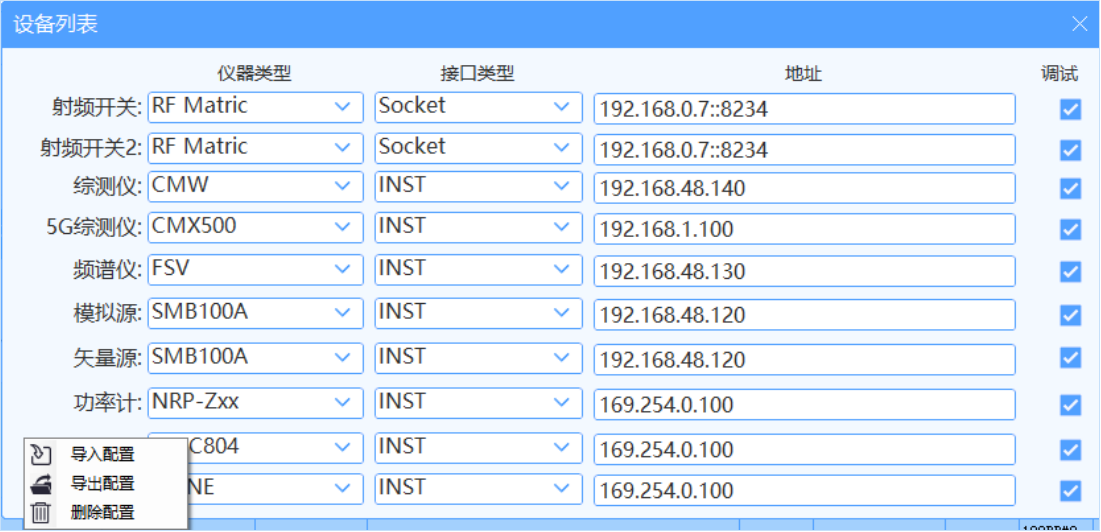

1.软件支持多厂商多种仪器型号；并自带校准功能。

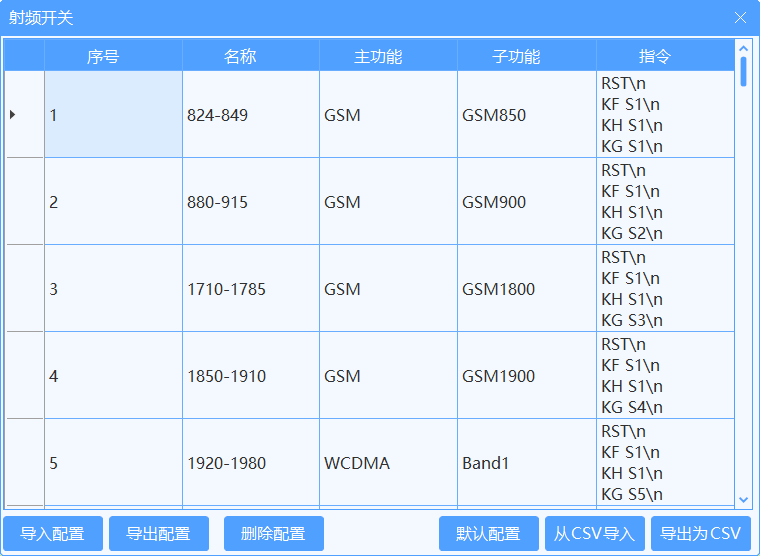

2.自动化切换测试链路，减少手动操作；并且支持GSM、WCDMA、LTE、NR认证测试。

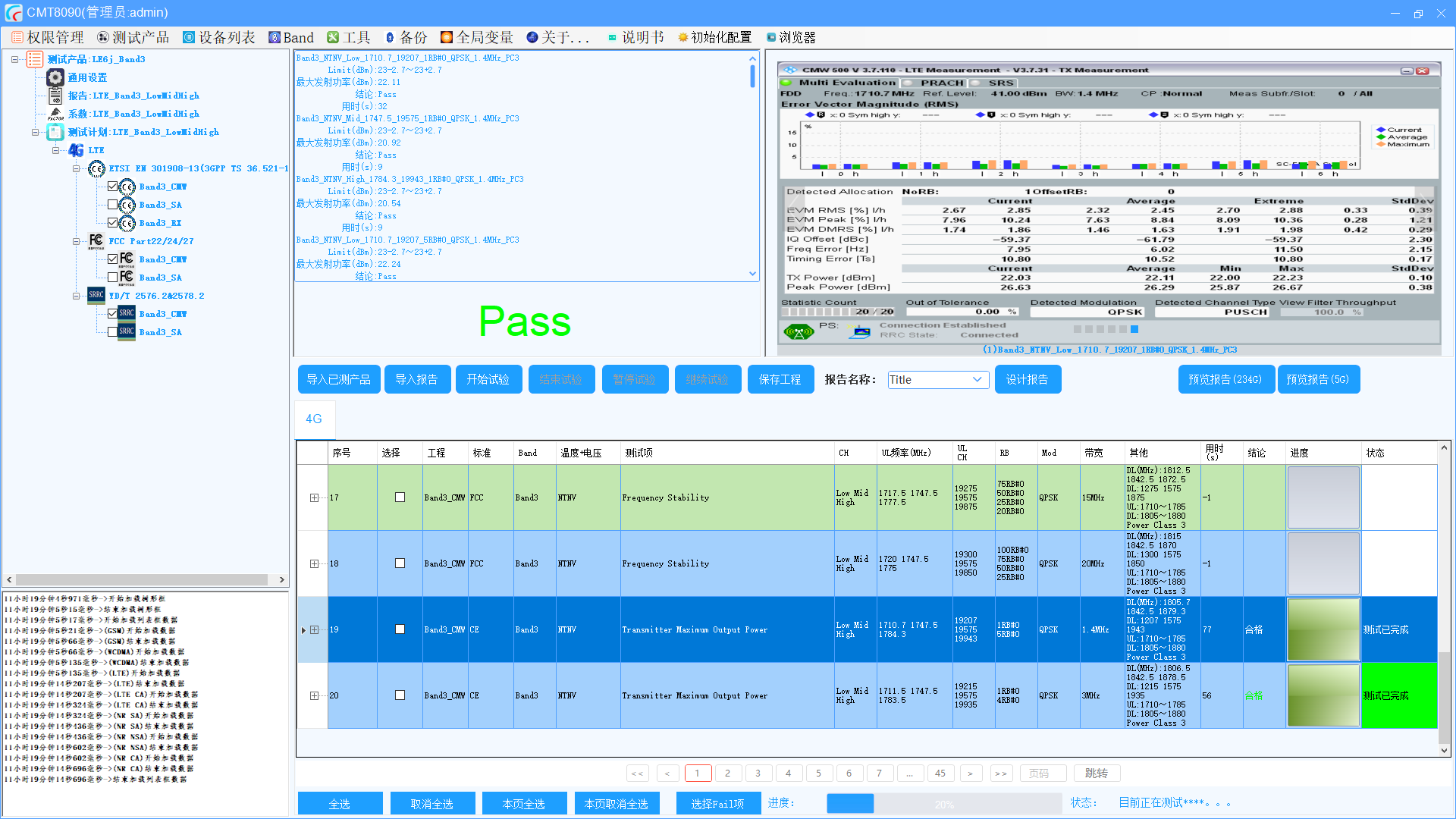

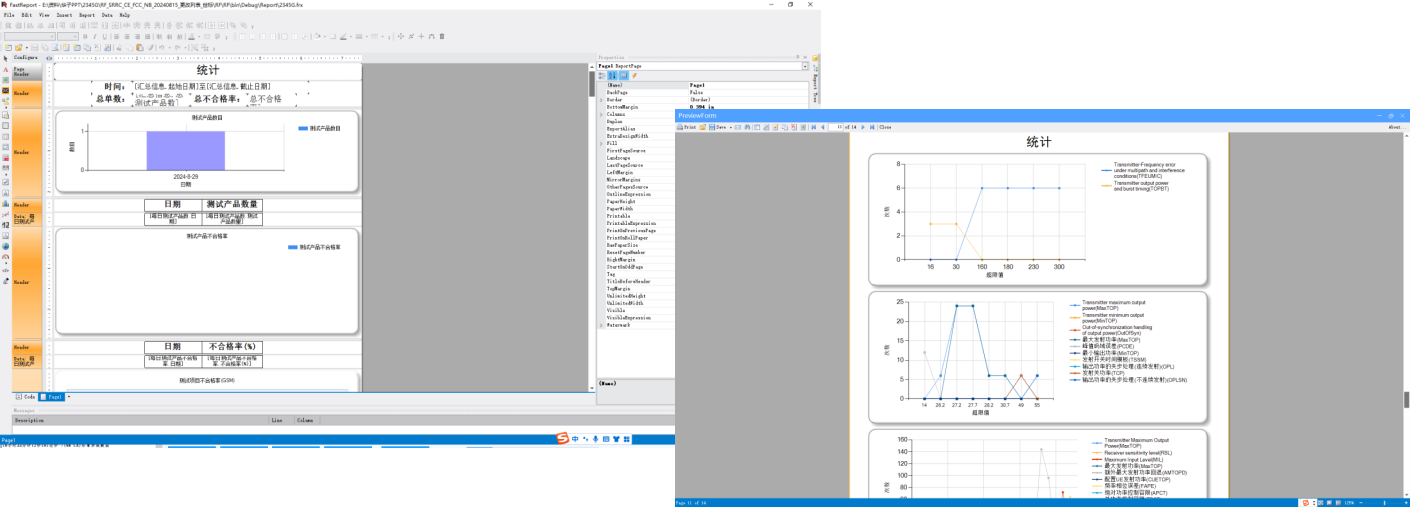

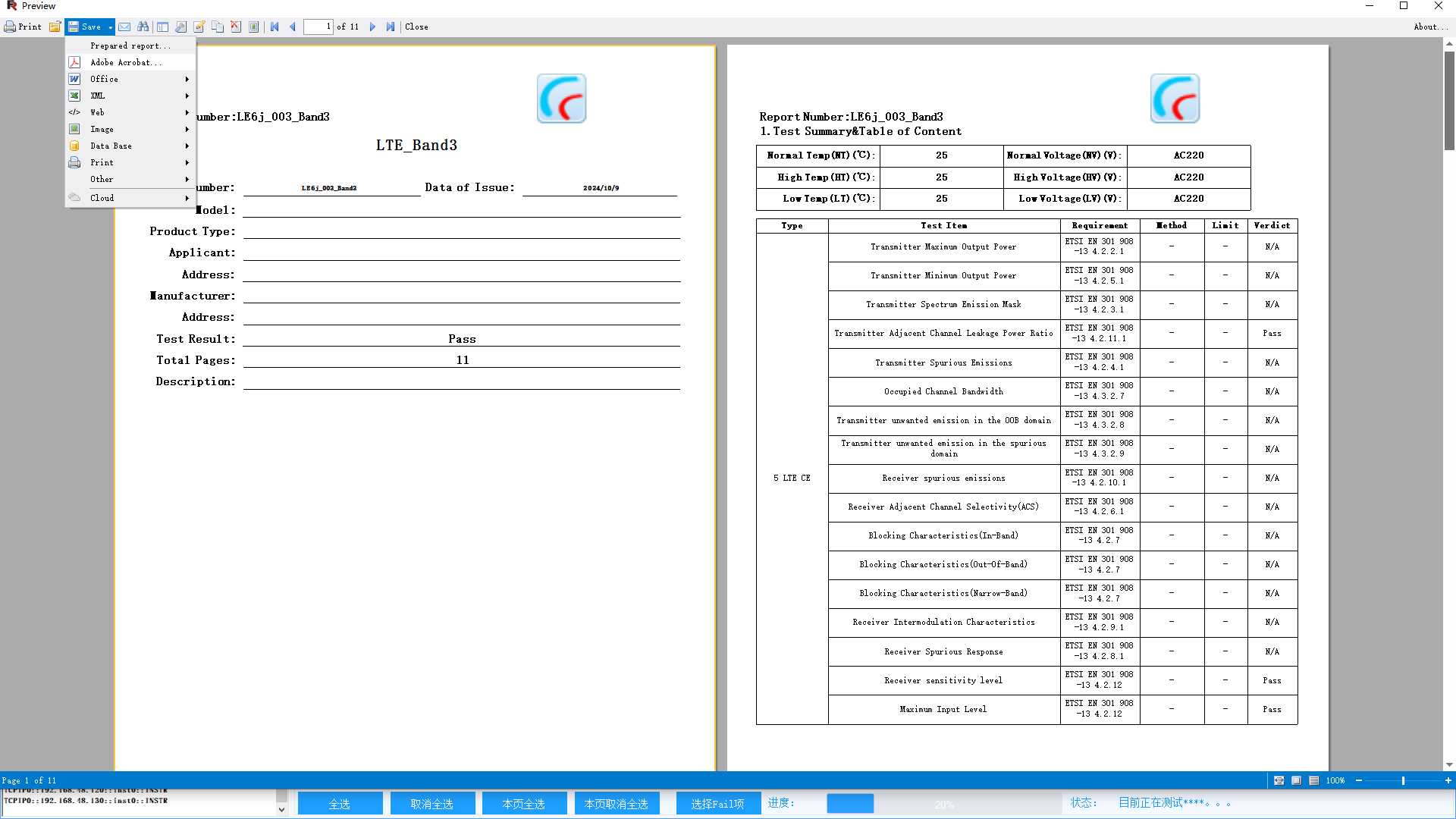

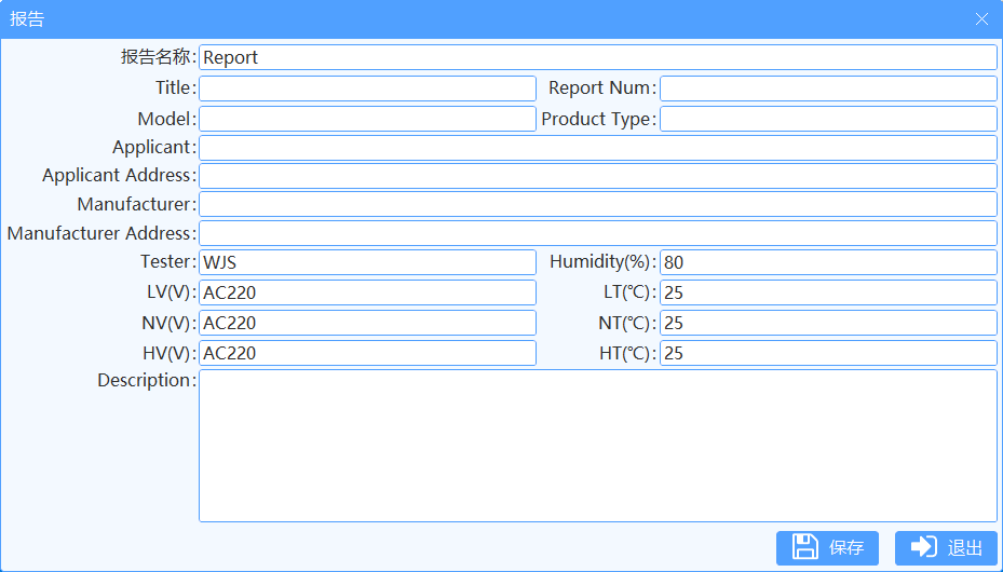

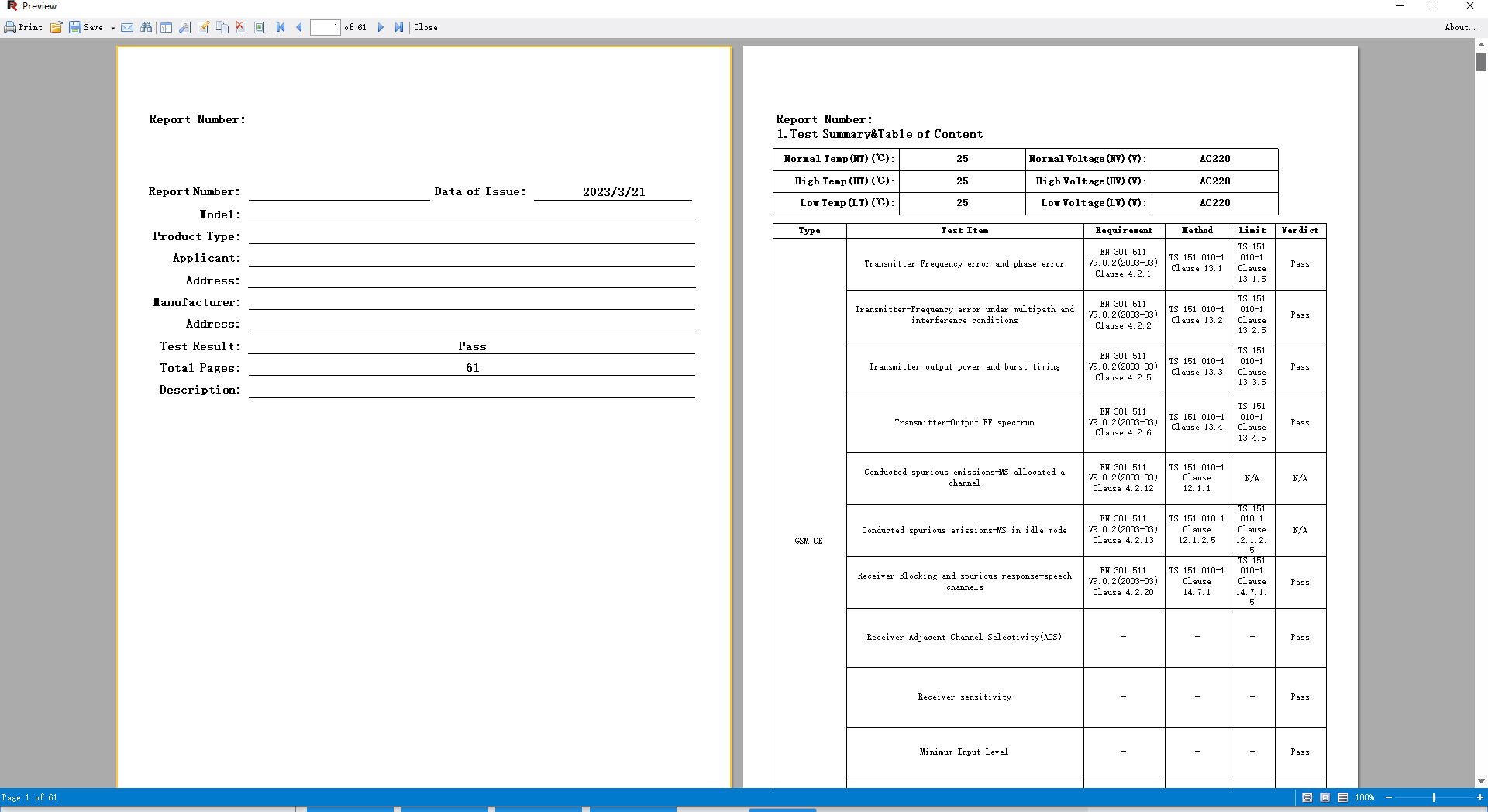

3.一键自动化测试和报告生成、客户可自行设计报告，并支持Excel、PDF、Word等多种报告格式。

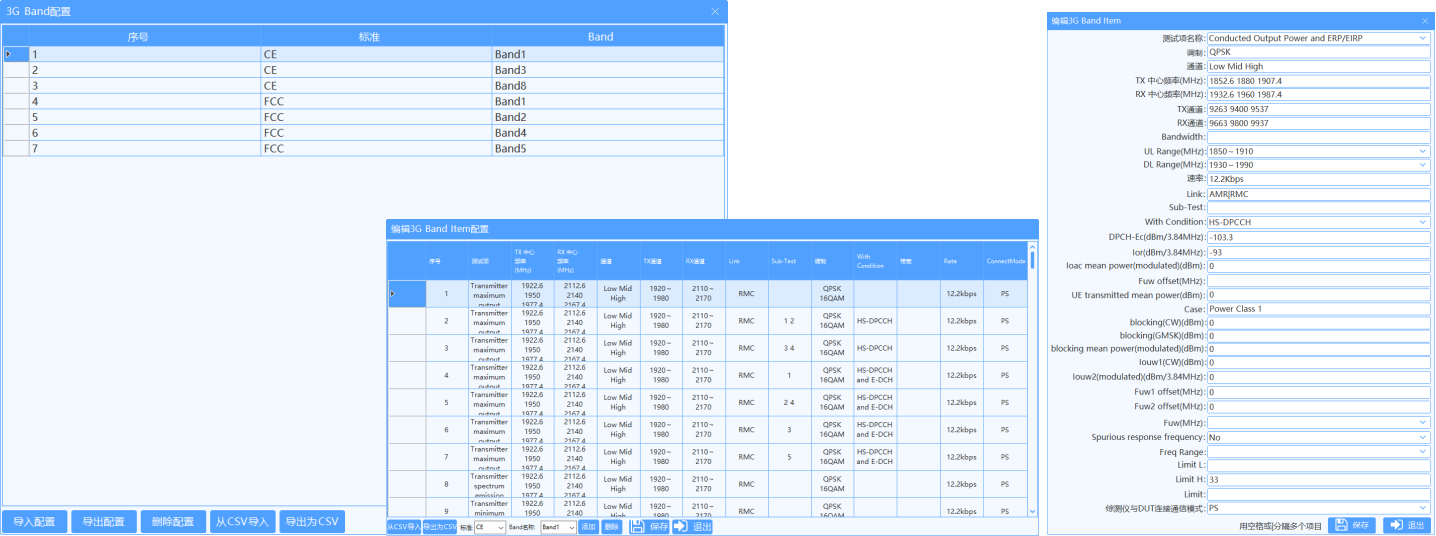

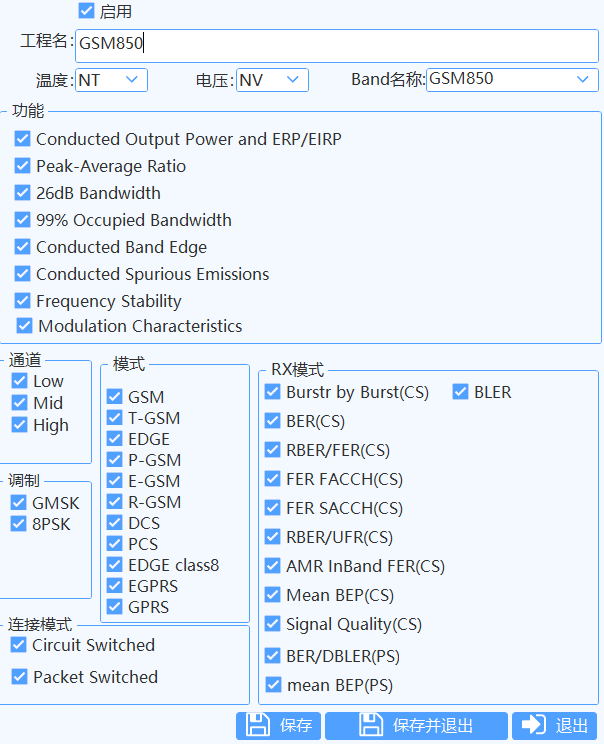

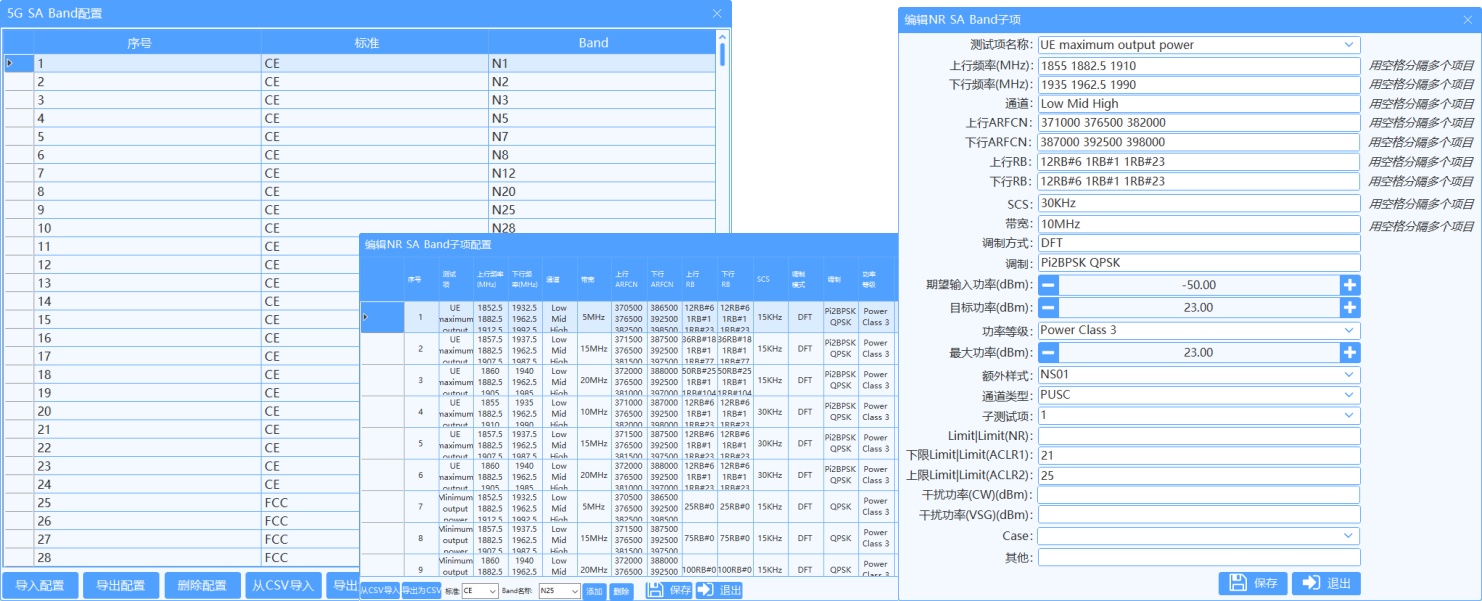

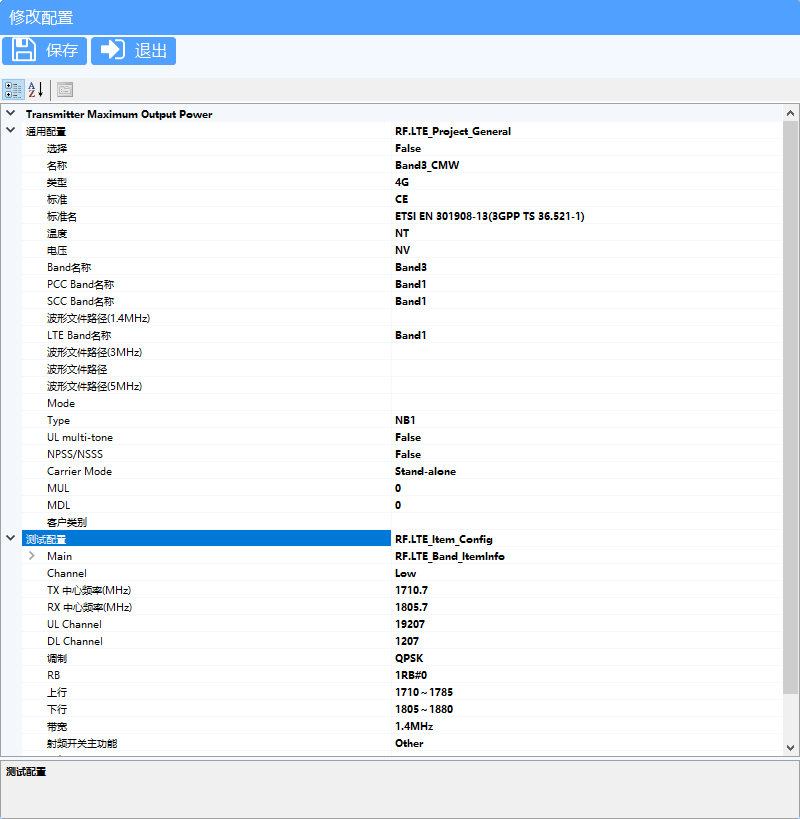

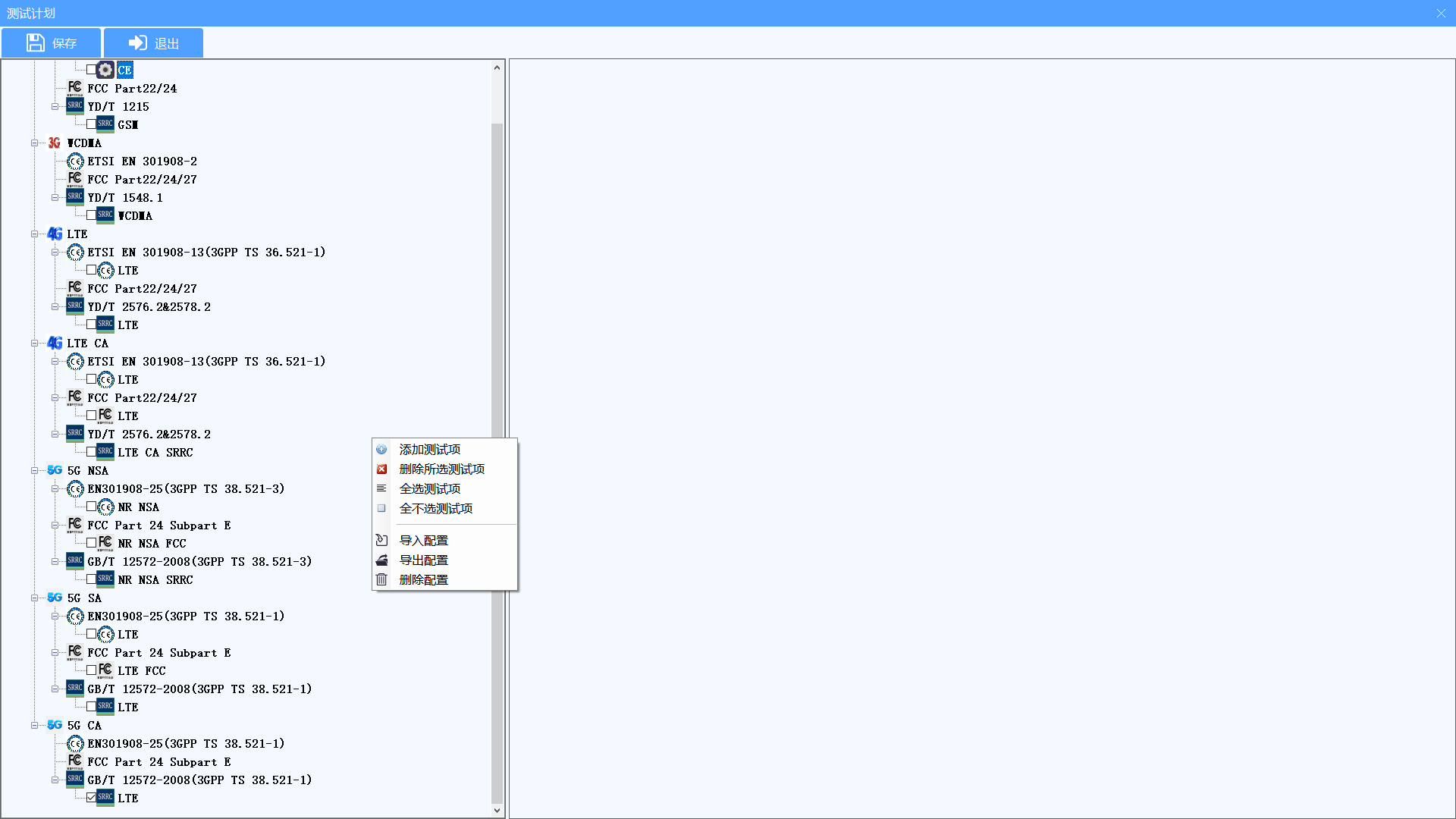

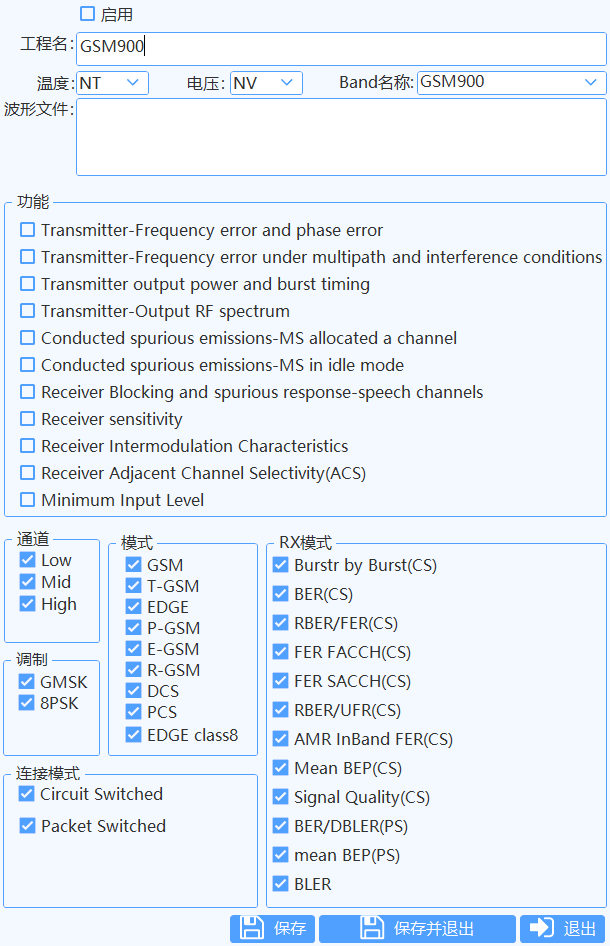

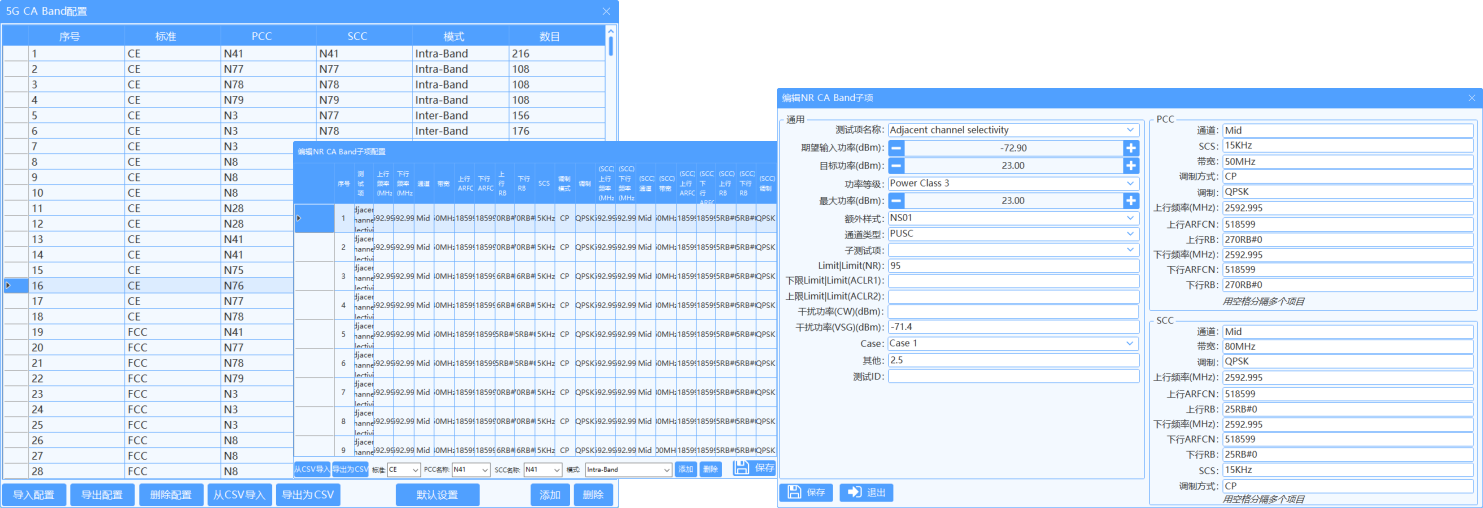

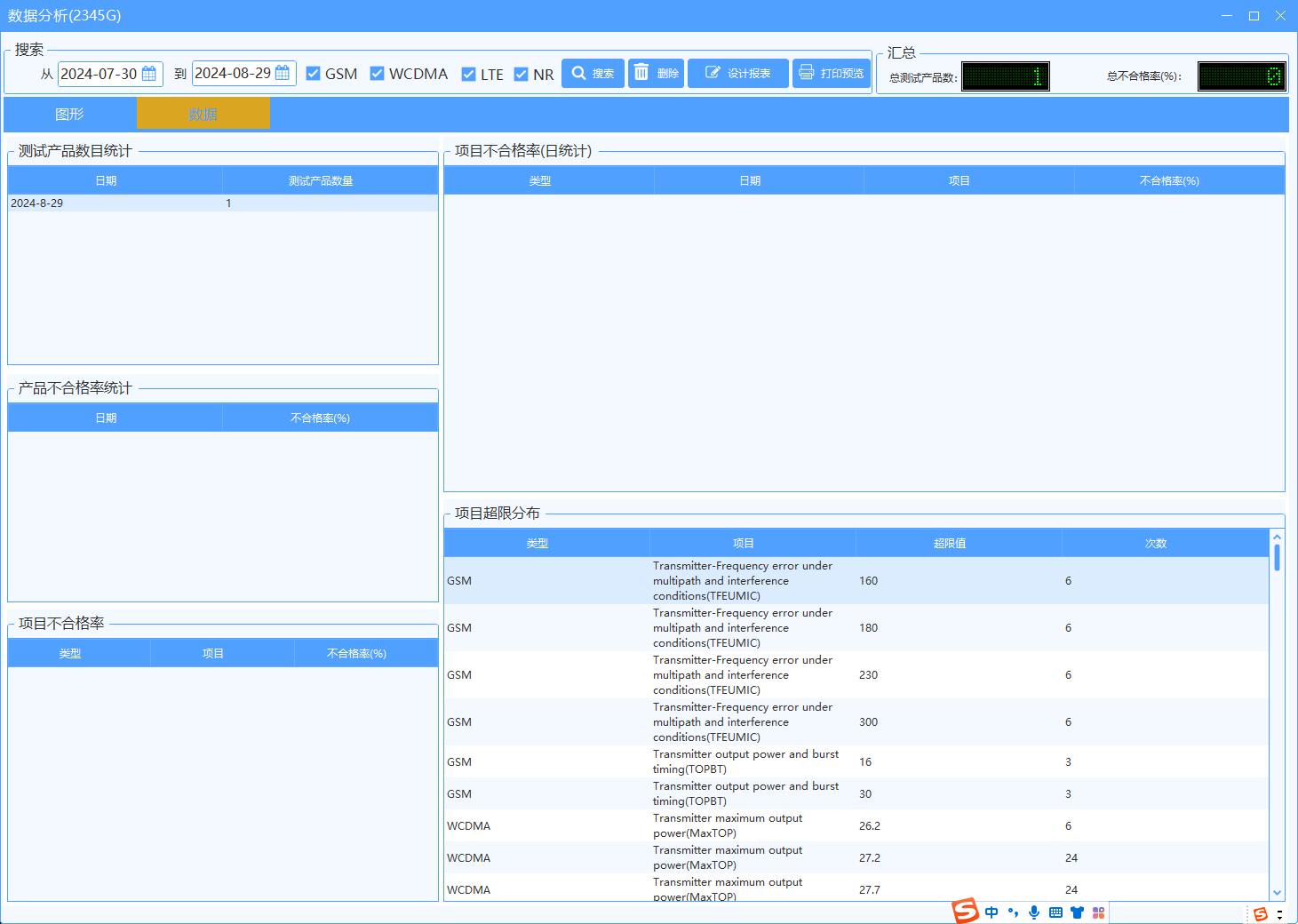

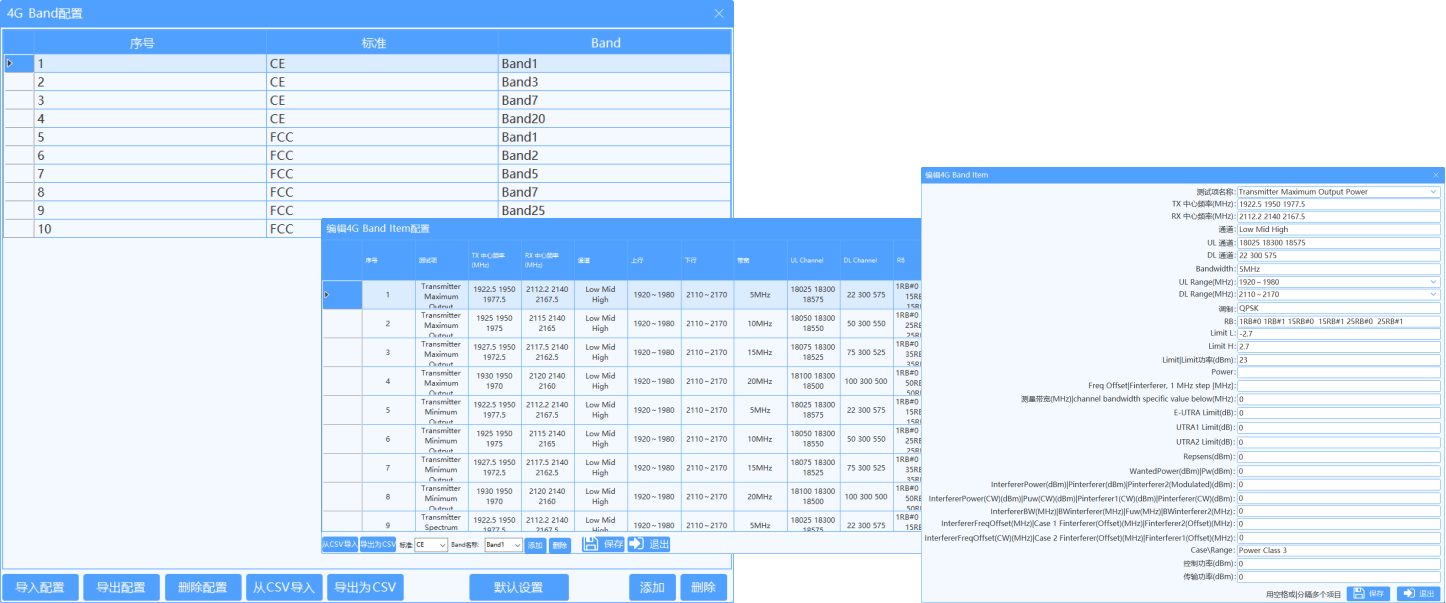

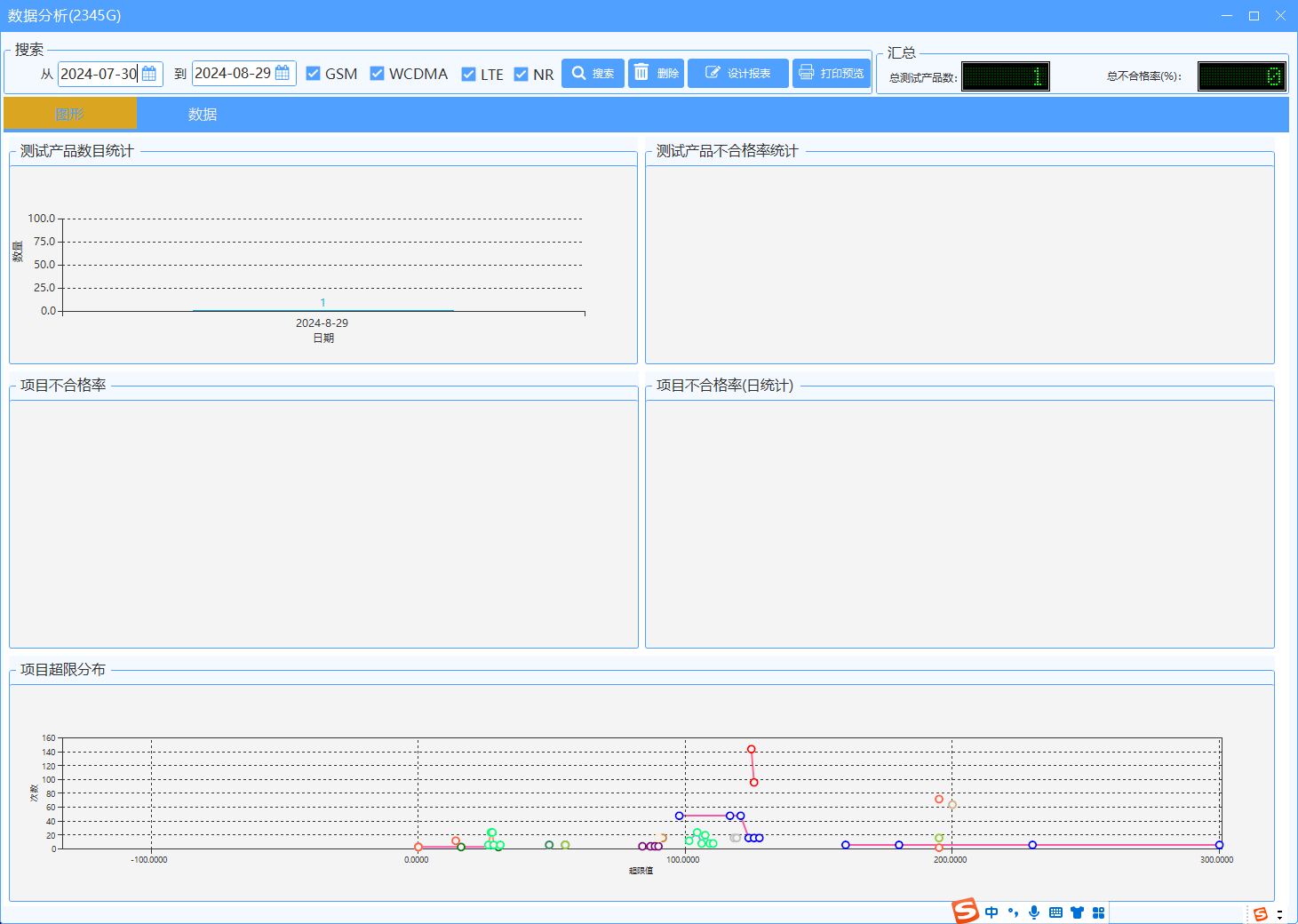

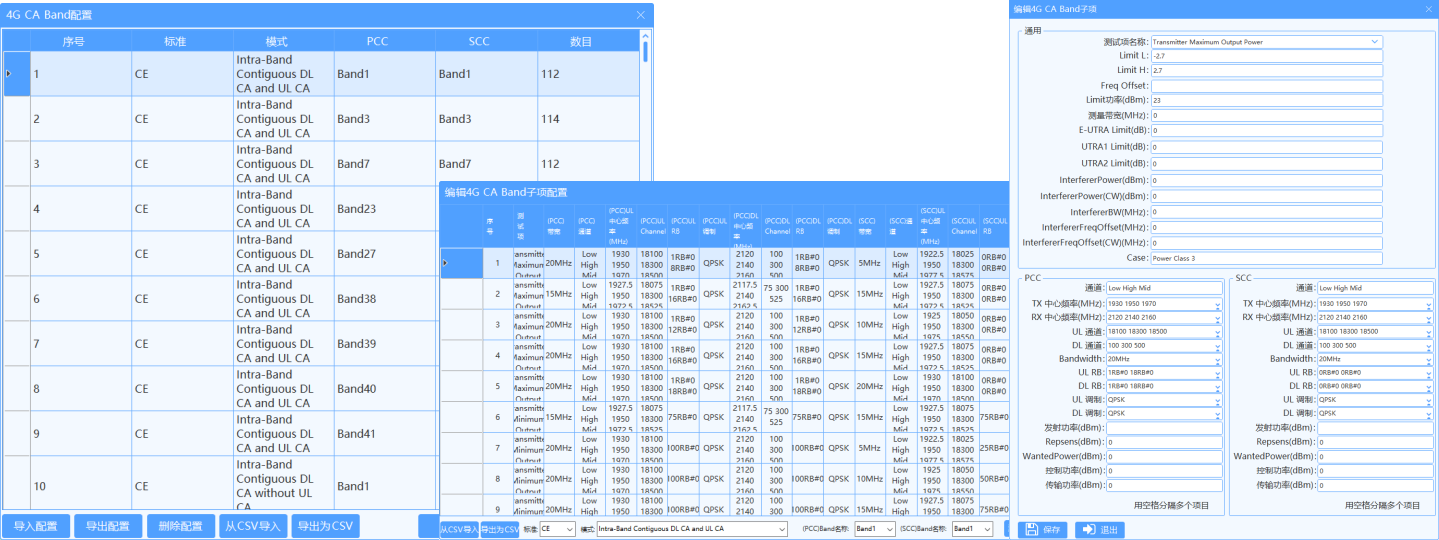

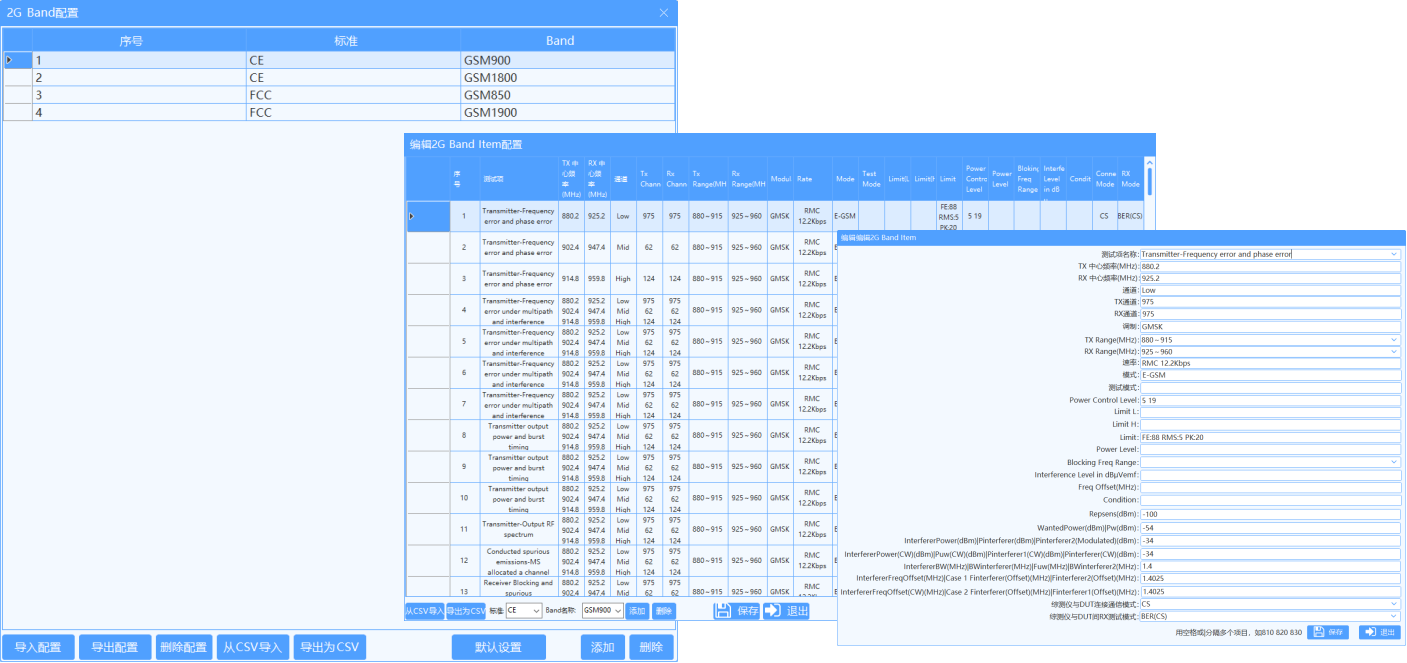

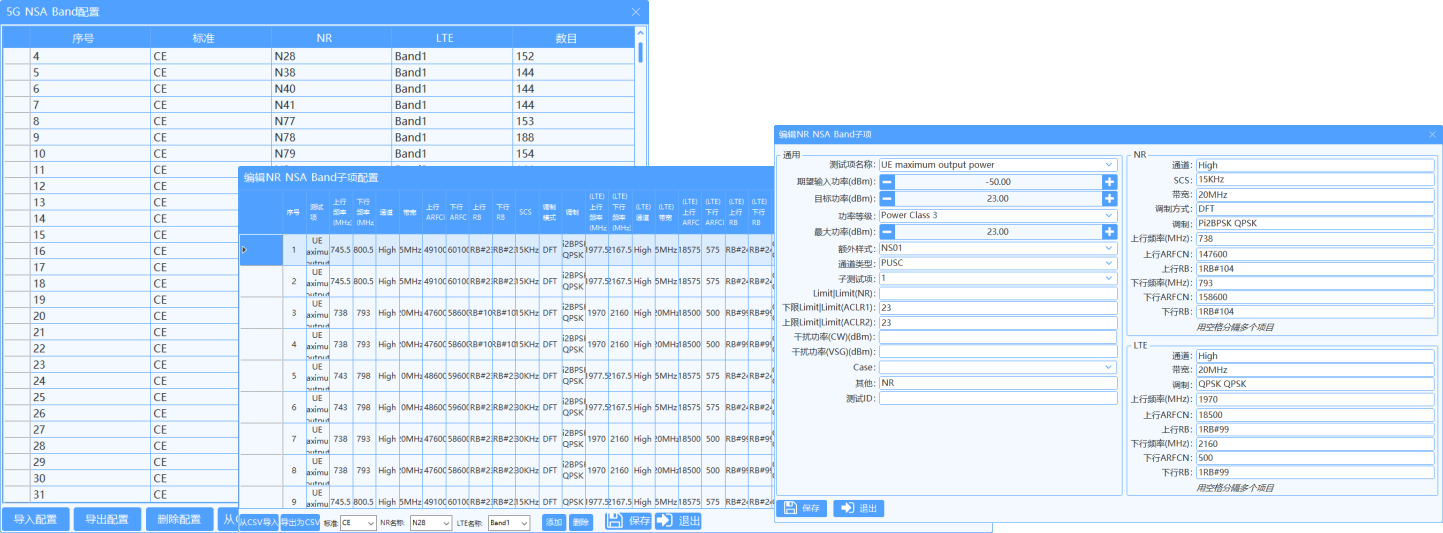

4.软件测试项开放可编辑：可自行根据规则配置自己所脚本；支持数据库及数据分析。

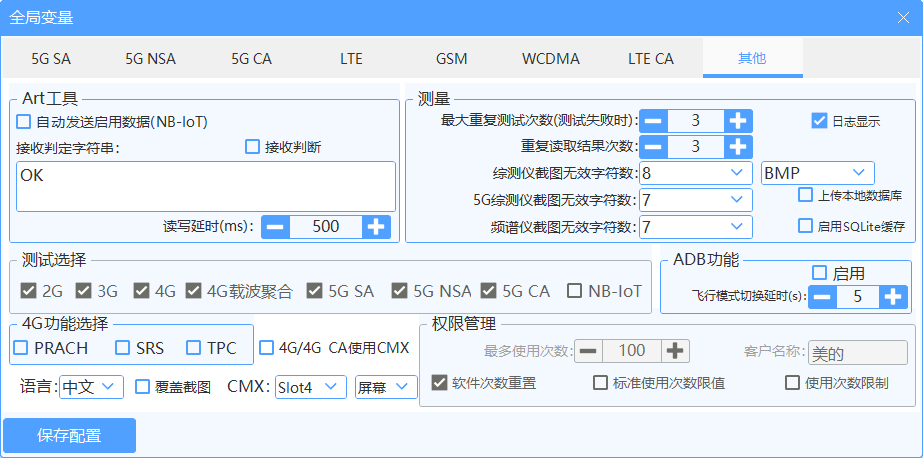

5.系统扩展性强，支持客户定制化需求。

三.系统连接示意图：

四.机柜前部布局图

2/3/4/5GRF系统

五.机柜后部布局图

2/3/4/5GRF系统

六.标准

1.CE标准——GSM

EN30151
测试项	GSM	射频开关	模拟源	矢量源	频谱仪	综测仪
1）Transmitter-Frequency error and phase error	√	√				√
2）Transmitter-Frequency error under multipath and interference conditions	√	√				√
3）Transmitter output power and burst timing	√	√				√
4）Transmitter-Output RF spectrum	√	√				√
5）Conducted spurious emissions-MS allocated a channel	√	√			√	√
6）Conducted spurious emissions-MS in idle mode	√	√			√	√
7）Receiver Blocking and spurious response-speech channels	√	√	√			√
8）Receiver Adjacent Channel Selectivity(ACS)	√	√		√		√
9）Receiver Intermodulation Characteristics	√	√	√	√		√
10）Minimum Input Level	√	√				√
11）Receiver sensitivity	√	√				√

2.CE标准(WCDMA)

EN301908-1/EN301908-2
测试项	WCDMA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）Transmitter maximum output power	√	√				√
2）Transmitter spectrum emission mask	√	√
3）Transmitter spurious emissions	√	√			√	√
4）Receiver spurious emissions	√	√			√	√
5）Transmitter minimum output power	√	√				√
6）Adjacent Channel Selectivity(ACS)	√	√		√		√
7）Receiver spurious response	√	√	√			√
8）Receiver intermodulation characteristics	√	√	√	√		√
9）Receiver blocking characteristics(In-band)	√	√		√		√
10）Receiver blocking characteristics(Out-band)	√	√	√			√
11）Receiver blocking characteristics(Narrow-band)	√	√	√			√
12）Out-of-synchronization handling of output power	√	√				√
13）Transmitter Adjacent Channel Leakage power Ratio(ACLR)	√	√				√
14）Receiver Reference Sensitivity level	√	√				√

3.CE标准(LTE)

EN301908-13
测试项	LTE	射频开关	模拟源	矢量源	频谱仪	综测仪
1）Transmitter Maximum Output Power	√	√				√
2）Transmitter Minimum Output Power	√	√				√
3）Transmitter Spectrum Emission Mask	√	√				√
4）Transmitter Adjacent Channel Leakage Power Ratio	√	√				√
5）Transmitter Spurious Emissions	√	√			√	√
6）Occupied Channel Bandwidth	√	√				√
7）Transmitter unwanted emission in the OOB domain	√	√			√	√
8）Transmitter unwanted emission in the spurious domain	√	√			√	√
9）Receiver spurious emissions	√	√			√	√
10）Receiver Adjacent Channel Selectivity(ACS)	√	√		√		√
11）Blocking Characteristics(In-Band)	√	√		√		√
12）Blocking Characteristics(Out-Of-Band)	√	√	√			√
13）Blocking Characteristics(Narrow-Band)	√	√	√			√
14）Receiver Intermodulation Characteristics	√	√	√	√		√
15）Receiver Spurious Response	√	√	√			√
16）Receiver sensitivity level	√	√				√
17）Minimum Input Level	√	√				√

4.CE标准(LTE CA)

ETSI EN 301908-13(3GPP TS 36.521-1)
测试项目	Intra-Band Contiguous DL CA and UL CA	Intra-Band Contiguous DL CA without UL CA	Intra-Band Non-Contiguous DL CA without UL CA	Inter-Band DL CA without UL CA
1）Transmitter Maximum Output Power	√
2）Transmitter Minimum Output Power	√
3）Transmitter Spectrum Emission Mask	√
4）Transmitter Adjacent Channel Leakage Power Ratio	√
5）Transmitter Spurious Emissions	√
6）Occupied Channel Bandwidth	√
7）Transmitter unwanted emission in the OOB domain	√
8）Transmitter unwanted emission in the spurious domain	√
9）Receiver spurious emissions	√	√	√	√
10）Receiver Adjacent Channel Selectivity(ACS)	√	√	√	√
11）Blocking Characteristics(In-Band)	√	√	√	√
12）Blocking Characteristics(Out-Of-Band)	√	√	√	√
13）Blocking Characteristics(Narrow-Band)	√	√	√	√
14）Receiver Intermodulation Characteristics	√	√	√	√
15）Receiver Spurious Response	√	√	√	√
16）Receiver sensitivity level	√	√	√	√
17）Minimum Input Level	√	√	√	√

5.CE标准(NR SA)

EN301908-25(3GPP TS 38.521-1)
测试项	NR SA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）UE maximum output power	√	√				√
2）Minimum output power	√	√				√
3）Spectrum Emission Mask	√	√				√
4）Adjacent channel leakage ratio	√	√				√
5）General spurious emissions	√	√			√	√
6）Tramsmit intermodulation	√	√			√	√
7）Spurious emission for UE co-existence	√	√			√	√
8）Spurious emissions	√	√			√	√
9）Adjacent channel selectivity	√	√		√		√
10）InBand Blocking	√	√		√		√
11）Out-of-band blocking	√	√	√			√
12）Narrow band blocking	√	√	√			√
13）Intermodulation characteristics	√	√	√	√		√
14）Spurious response	√	√	√			√
15）Reference sensitivity	√	√				√
16）Maximum input level	√	√				√

6.CE标准(NR NSA)

EN301908-25(3GPP TS 38.521-3)
测试项	NR NSA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）UE maximum output power	√	√				√
2）Minimum output power	√	√				√
3）Spectrum Emission Mask	√	√				√
4）Adjacent channel leakage ratio	√	√				√
5）General spurious emissions	√	√			√	√
6）Tramsmit intermodulation	√	√			√	√
7）Spurious emission for UE co-existence	√	√			√	√
8）Spurious emissions	√	√			√	√
9）Adjacent channel selectivity	√	√		√		√
10）InBand Blocking	√	√		√		√
11）Out-of-band blocking	√	√	√			√
12）Narrow band blocking	√	√	√			√
13）Intermodulation characteristics	√	√	√	√		√
14）Spurious response	√	√	√			√
15）Reference sensitivity	√	√				√
16）Maximum input level	√	√				√

7.CE标准(NR CA)

EN301908-25(3GPP TS 38.521-1)
测试项	Intra-Band	Inter-Band	射频开关	模拟源	矢量源	频谱仪	综测仪
1）UE maximum output power		√	√				√
2）Minimum output power		√	√				√
3）Spectrum Emission Mask		√	√				√
4）Adjacent channel leakage ratio		√	√				√
5）General spurious emissions		√	√			√	√
6）Tramsmit intermodulation		√	√			√	√
7）Spurious emission for UE co-existence		√	√			√	√
8）Spurious emissions	√	√	√			√	√
9）Adjacent channel selectivity	√	√	√		√		√
10）InBand Blocking	√(FFS)		√		√		√
11）Out-of-band blocking	√(FFS)		√	√			√
12）Narrow band blocking	√(FFS)		√	√			√
13）Spurious response	√(FFS)		√	√			√
14）Reference sensitivity	√		√				√
15）Maximum input level	√(FFS)	√(FFS)	√				√

8.FCC标准(GSM)

FCC Part22/24
测试项	GSM	射频开关	频谱仪	综测仪
1）Conducted Output Power and ERP/EIRP	√	√		√
2）Peak-Average Ratio	√	√	√	√
3）26dB Bandwidth	√	√	√	√
4）99% Occupied Bandwidth	√	√	√	√
5）Conducted Band Edge	√	√	√	√
6）Conducted Spurious Emissions	√	√	√	√
7）Frequency Stability	√	√		√

9.FCC标准(WCDMA)

FCC Part22/24/27
测试项	WCDMA	射频开关	频谱仪	综测仪
1）Conducted Output Power and ERP/EIRP	√	√		√
2）Peak-Average Ratio	√	√	√	√
3）26dB Bandwidth	√	√	√	√
4）Occupied Bandwidth	√	√	√	√
5）Band Edge Emissions at Antenna Terminal	√	√	√	√
6）Extended Band Edge Emissions at Antenna Terminal	√	√	√	√
7）Spurious and Harmonic Emissions at Antenna Terminal	√	√	√	√
8）Frequency Stability	√	√		√

10.FCC标准(LTE)

FCC Part22/24/27
测试项	LTE	射频开关	频谱仪	综测仪
1）Radiated Power(ERP/EIRP)	√	√		√
2）Peak-Average Ratio	√	√	√	√
3）26dB Bandwidth	√	√	√	√
4）Occupied Bandwidth	√	√	√	√
5）Band Edge Emissions at Antenna Terminal	√	√	√	√
6）Extended Band Edge Emissions at Antenna Terminal	√	√	√	√
7）Spurious and Harmonic Emissions at Antenna Terminal	√	√	√	√
8）Frequency Stability	√	√		√

11.FCC标准(LTE CA)

FCC Part22/24/27
测试项	IntraBand Contiguous DL CA and UL CA	IntraBand Contiguous DL CA without UL CA	InterBand DL CA without UL CA	Intra-Band NonContiguous DL CA without UL CA
1）Radiated Power(ERP/EIRP)	√
2）Peak-Average Ratio	√
3）26dB Bandwidth	√
4）Occupied Bandwidth	√
5）Band Edge Emissions at Antenna Terminal	√
6）Extended Band Edge Emissions at Antenna Terminal	√
7）Spurious and Harmonic Emissions at Antenna Terminal	√
8）Frequency Stability	√

12.FCC标准(NR SA)

FCC Part 24 Subpart E
测试项	NR SA	射频开关	频谱仪	综测仪
1）Power	√	√		√
2）PeakToAverage Ratio	√	√	√	√
3）Occupied Bandwidth	√	√		√
4）Band Edge	√	√	√	√
5）OutOfBand Emissions	√	√	√	√
6）Frequency Stability	√	√		√

13.FCC标准(NR NSA)

FCC Part 24 Subpart E
测试项	NR NSA	射频开关	频谱仪	综测仪
1）Power	√	√		√
2）PeakToAverage Ratio	√	√	√	√
3）Occupied Bandwidth	√	√		√
4）Band Edge	√	√	√	√
5）OutOfBand Emissions	√	√	√	√
6）Frequency Stability	√	√		√

14.FCC标准(NR CA)

FCC Part 24 Subpart E
测试项	NR CA	射频开关	频谱仪	综测仪
1）Power	√	√		√
2）PeakToAverage Ratio	√	√	√	√
3）Occupied Bandwidth	√	√		√
4）Band Edge	√	√	√	√
5）OutOfBand Emissions	√	√	√	√
6）Frequency Stability	√	√		√

15.SRRC标准——GSM

YD/T 1215-2006
测试项	GSM	射频开关	模拟源	矢量源	频谱仪	综测仪
1）频率相位误差	√	√				√
2）发射机输出功率	√	√				√
3）发射机功率控制	√	√				√
4）突发时间功率关系	√	√				√
5）发射调制谱	√	√				√
6）发射开关谱	√	√				√
7）传导发射杂散	√	√			√	√
8）参考灵敏度	√	√				√

16.SRRC标准(WCDMA)

YD/T 1548.1-2009/3GPP TS 34.121-1
测试项	WCDMA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率	√	√				√
2）矢量幅度误差	√	√				√
3）峰值码域误差	√	√				√
4）频率相位误差	√	√				√
5）邻道泄漏功率比	√	√				√
6）发射模板	√	√				√
7）最小输出功率	√	√				√
8）上行闭环功率控制	√	√				√
9）上行开环功率控制	√	√				√
10）发射开关时间模板	√	√				√
11）发射机互调	√	√	√	√		√
12）发射杂散	√	√			√	√
13）输出功率的失步处理(连续发射)	√	√				√
14）发射关功率	√	√				√
15）占用带宽	√	√				√
16）输出功率的失步处理(不连续发射)	√	√				√
17）相位非连续性	√	√				√
18）参考灵敏度电平	√	√				√
19）最大输入电平	√	√				√
20）邻道选择性	√	√		√		√
21）带内阻塞	√	√		√		√
22）带外阻塞	√	√	√			√
23）窄带阻塞	√	√	√			√
24）杂散响应	√	√	√			√
25）接收机互调	√	√	√	√		√
26）接收杂散	√	√			√	√

17.SRRC标准(LTE)

YD/T 2576.2-2013/YD/T 2578.2-2013
测试项	WCDMA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率	√	√				√
2）最大发射功率回退	√	√				√
3）额外最大发射功率回退	√	√				√
4）配置UE发射功率	√	√				√
5）最小发射功率	√	√				√
6）矢量幅度误差	√	√				√
7）PUSCH跳变周期矢量幅度误差	√	√				√
8）频率相位误差	√	√				√
9）占用带宽	√	√				√
10）邻道泄漏功率比	√	√				√
11）发射模板	√	√				√
12）额外发射模板	√	√				√
13）绝对功率控制容限	√	√				√
14）相对功率控制容限	√	√				√
15）总功率控制容限	√	√				√
16）载波泄漏	√	√				√
17）带内杂散	√	√				√
18）EVM均衡器频谱平坦度	√	√				√
19）发射开关时间模板	√	√				√
20）PRACH时间模板	√	√				√
21）SRS时间模板	√	√				√
22）发射机互调	√	√				√
23）发射杂散	√	√			√	√
24）额外发射杂散	√	√			√	√
25）发射关功率	√	√				√
26）UE共存杂散辐射带	√	√			√	√

18.SRRC标准(LTE CA)

YD/T 2576.2-2013/YD/T 2578.2-2013
测试项	WCDMA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率	√	√				√
2）最大发射功率回退	√	√				√
3）额外最大发射功率回退	√	√				√
4）配置UE发射功率	√	√				√
5）最小发射功率	√	√				√
6）矢量幅度误差	√	√				√
7）PUSCH跳变周期矢量幅度误差	√	√				√
8）频率相位误差	√	√				√
9）占用带宽	√	√				√
10）邻道泄漏功率比	√	√				√
11）发射模板	√	√				√
12）额外发射模板	√	√				√
13）绝对功率控制容限	√	√				√
14）相对功率控制容限	√	√				√
15）总功率控制容限	√	√				√
16）载波泄漏	√	√				√
17）带内杂散	√	√				√
18）EVM均衡器频谱平坦度	√	√				√
19）发射开关时间模板	√	√				√
20）PRACH时间模板	√	√				√
21）SRS时间模板	√	√				√
22）发射机互调	√	√				√
23）发射杂散	√	√			√	√
24）额外发射杂散	√	√			√	√
25）发射关功率	√	√				√
26）UE共存杂散辐射带	√	√			√	√

19.SRRC标准(NR SA)

GB/T 12572-2008(3GPP TS 38.521-1)
测试项	NR SA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率	√	√				√
2）最大发射功率回退	√	√				√
3）额外最大发射功率回退	√	√				√
4）配置UE发射功率	√	√				√
5）最小发射功率	√	√				√
6）矢量幅度误差	√	√				√
7）频率相位误差	√	√				√
8）占用带宽	√	√				√
9）邻道泄漏功率比	√	√				√
10）发射模板	√	√				√
11）额外发射模板	√	√				√
12）绝对功率控制容限	√	√				√
13）相对功率控制容限	√	√				√
14）总功率控制容限	√	√				√
15）载波泄漏	√	√				√
16）带内杂散	√	√				√
17）EVM均衡器频谱平坦度	√	√				√
18）发射开关时间模板	√	√				√
19）PRACH时间模板	√	√				√
20）SRS时间模板	√	√				√
21）发射机互调	√	√				√
22）发射杂散	√	√			√	√
23）额外发射杂散	√	√			√	√
24）发射关功率	√	√				√
25）UE共存杂散辐射带	√	√			√	√

20.SRRC标准(NR NSA)

GB/T 12572-2008(3GPP TS 38.521-3)
测试项	NR NSA	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率	√	√				√
2）最大发射功率回退	√	√				√
3）额外最大发射功率回退	√	√				√
4）配置UE发射功率	√	√				√
5）最小发射功率	√	√				√
6）矢量幅度误差	√	√				√
7）频率相位误差	√	√				√
8）占用带宽	√	√				√
9）邻道泄漏功率比	√	√				√
10）发射模板	√	√				√
11）额外发射模板	√	√				√
12）绝对功率控制容限	√	√				√
13）相对功率控制容限	√	√				√
14）总功率控制容限	√	√				√
15）载波泄漏	√	√				√
16）带内杂散	√	√				√
17）EVM均衡器频谱平坦度	√	√				√
18）发射开关时间模板	√	√				√
19）PRACH时间模板	√	√				√
20）SRS时间模板	√	√				√
21）发射机互调	√	√				√
22）发射杂散	√	√			√	√
23）额外发射杂散	√	√			√	√
24）发射关功率	√	√				√
25）UE共存杂散辐射带	√	√			√	√

21.SRRC标准(NR CA)

GB/T 12572-2008(3GPP TS 38.521-1)
测试项	Intra-Band	Inter-Band	射频开关	模拟源	矢量源	频谱仪	综测仪
1）最大发射功率		√	√				√
2）最大发射功率回退	√(FFS)	√(FFS)	√				√
3）额外最大发射功率回退	√(FFS)	√(FFS)	√				√
4）配置UE发射功率	√(FFS)	√	√				√
5）最小发射功率		√	√				√
6）矢量幅度误差		√	√				√
7）频率相位误差		√	√				√
8）占用带宽		√	√				√
9）邻道泄漏功率比		√	√				√
10）发射模板		√	√				√
11）载波泄漏		√	√				√
12）带内杂散		√	√				√
13）发射开关时间模板		√	√				√
14）发射机互调		√	√				√
15）发射杂散		√	√			√	√
16）发射关功率		√	√				√
17）UE共存杂散辐射带		√	√			√	√
